Custom Data Loaders

Data loaders are the bridge between your data sources and TokTagger's annotation interface. They define how to retrieve and format data for visualization and annotation. TokTagger comes with built-in loaders for common formats (images, Parquet files, UDA), but you can easily create custom loaders for your specific data sources.

Overview

A data loader is responsible for:

  1. Defining the expected sample data format (e.g., shot IDs with signal names, file paths)
  2. Retrieving the actual data from your data source
  3. Converting the data into TokTagger's standardized format for visualization

Creating a Custom Data Loader

Step 1: Import Required Components

from toktagger.api.core.data_loaders import DataLoader, LoaderRegistry
from toktagger.api.schemas.data import Data, MultiVariateTimeSeriesData, TimeSeriesData
from toktagger.api.schemas.samples import ShotData, FileData, TimeSeriesFileData
from typing import Type
import pydantic

Step 2: Define Your Data Loader Class

Create a class that inherits from DataLoader and implement the required methods:

@LoaderRegistry.register("my_custom_loader")
class MyCustomLoader(DataLoader):
    """DataLoader for retrieving data from my custom data source"""

    signal_name_help = "Use the sensor names from my data source, for example temp_1, temp_2."

    def __init__(self, params):
        # Initialize your data source connection here
        # For example: database connection, API client, etc.
        super().__init__(params)

    @classmethod
    def sample_data_type(cls) -> Type[ShotData | FileData | TimeSeriesFileData]:
        """Define what type of sample data this loader expects"""
        return ShotData  # or FileData, or TimeSeriesFileData

    @pydantic.validate_call
    def get_sample(self, shot_id: int, sample_data: ShotData) -> Data:
        """
        Retrieve and return data for a specific sample.

        Args:
            shot_id: Unique identifier for the sample
            sample_data: Sample-specific configuration (signal names, file paths, etc.)

        Returns:
            Data object in TokTagger format
        """
        # Your implementation here
        pass

Signal name help (optional)

Set the signal_name_help class attribute to tell users which signal names your data loader accepts. The Add Samples dialog shows this text in the help tooltip next to the Signal Names field. You can include example signal names in this text. If you do not set signal_name_help, the dialog shows a general help text.

Step 3: Register the Loader

The @LoaderRegistry.register("my_custom_loader") decorator automatically registers your loader with TokTagger. The name you provide becomes the identifier used in project configurations.

Step 4: Run Server with Custom Loader

If you have added your own data loaders, you must make sure they have been loaded before the server is run. You can run the server from within a Python script by initializing the Server class, and running server.run(). For example, your script for adding a data loader and running the server may look like this:

from toktagger.api.core import DataLoader, LoaderRegistry, Server
from toktagger.api.schemas.samples import Sample
from toktagger.api.schemas.data import TimeSeriesData

# Say we have a python module which can load data from our Tokamak's data backend:
import my_tokamak_data_backend

# Decorate your class using the Loader Registry,
# providing a string which you want to refer to your data loader as:
@LoaderRegistry.register("my_tokamak")
class MyDataLoader(DataLoader):

    def get_sample(self, sample: Sample) -> TimeSeriesData:
        # Here you add the logic for how to obtain the data for your given sample
        loaded: dict = my_tokamak_data_backend.get(
            shot_id = sample.shot_id,
            signal_name = sample.signal_names[0]
            )

        # Format it into the Data schema which you want to use
        # For example, if we are loading time series data:
        return TimeSeriesData(
            time=loaded["time"],
            values=loaded["values"]
            )

# Create and run a server in the same file,
# so that your data loader is correctly added to the registry:
server = Server()
server.run()

To run your data loader in the Docker Compose stack, read Add custom data loaders and models.

Data Types and Schemas

Sample Data Types

Choose the appropriate sample data type for your loader:

ShotData

For shot-based data sources (like UDA, databases):

class ShotData(BaseModel):
    protocol: Literal["uda", "sal"]
    signal_names: list[str]  # List of signals to retrieve

Use when: Data is identified by shot number and signal names.

FileData

For file-based data sources (images, videos):

class FileData(BaseModel):
    file_name: str  # Path to file or directory
    type: FileType  # e.g., "png", "jpeg", "mp4"
    protocol: Literal["file", "s3"]  # "file" or "s3"

Use when: Data is stored in individual files with different types.

TimeSeriesFileData

For time series files (Parquet, CSV, NetCDF):

class TimeSeriesFileData(FileData):
    signal_names: Optional[list[str]] = None  # Optional signal filter

Use when: Files contain time series data with multiple signals.

Return Data Types

Your get_sample() method should return one of these data types:

ImageData

For image-based visualization:

class ImageData(Data):
    frame: int  # Frame number or identifier
    values: str  # Base64-encoded image string

TimeSeriesData

For single signal time series:

class TimeSeriesData(Data):
    time: list[float]  # Time values
    values: list[float]  # Signal values

MultiVariateTimeSeriesData

For multiple signals (most common for fusion diagnostics):

class MultiVariateTimeSeriesData(Data):
    values: dict[str, TimeSeriesData | None]  # Signal name -> data

Profile2DData

For a quantity measured against time and one other dimension, such as frequency, radius or channel:

class Profile2DData(Data):
    time: list[float]
    dim_1: list[float]
    values: list[list[float]]  # 2D array, indexed [dim_1][time]

MultiProfile2DData

For multiple 2D profiles:

class MultiProfile2DData(Data):
    values: dict[str, Profile2DData | None]  # Signal name -> profile

Complete Example: CSV Time Series Loader

Here's a complete example of a custom loader for CSV time series files:

loader.py
import pandas as pd
import pathlib
from typing import Type
import pydantic

from toktagger.api.core.data_loaders import DataLoader, LoaderRegistry
from toktagger.api.schemas.data import MultiVariateTimeSeriesData, TimeSeriesData
from toktagger.api.schemas.samples import Sample, TimeSeriesFileData


@LoaderRegistry.register("csv_timeseries")
class CSVTimeSeriesLoader(DataLoader):
    """DataLoader for retrieving time series data from CSV files"""

    @classmethod
    def sample_data_type(cls) -> Type[TimeSeriesFileData]:
        # This loader expects file paths with optional signal names
        return TimeSeriesFileData

    @pydantic.validate_call
    def get_sample(
        self,
        sample: Sample,
        params: DataParams = DataParams(),
    ) -> MultiVariateTimeSeriesData:
        """
        Load time series data from a CSV file.

        Expected CSV format:
        - First column: time values
        - Remaining columns: signal values with column headers
        """
        # Verify file exists
        file_path = pathlib.Path(sample.data.file_name)
        if not file_path.exists():
            raise FileNotFoundError(
                f"Could not find CSV file at '{file_path}'"
            )

        # Read CSV file
        df = pd.read_csv(file_path, index_col=0)  # First column is time

        # Filter to requested signals if specified
        if sample.data.signal_names:
            df = df[sample_data.signal_names]

        # Handle missing values
        df = df.fillna(0)

        # Extract time values from index
        time = df.index.values.tolist()

        # Convert each column to TimeSeriesData format
        results = {}
        for column_name in df.columns:
            results[column_name] = TimeSeriesData(
                time=time,
                values=df[column_name].values.tolist()
            )

        return MultiVariateTimeSeriesData(values=results)

This examples assumes the CSV file has the following format:

  • First column: time values
  • Remaining columns: signal values with column headers

The file should be called {shot_id}.csv.

For example:

1.csv
time,signal1,signal2
0.0,1.0,2.0
0.1,1.5,2.5
0.2,2.0,3.0

Running the Example

To run the example above and create a custom CSV dataloader:

  • Copy the code above into a file called loader.py
  • Make a file to run the server called run.py, which does:
run.py
from loader import CSVTimeSeriesLoader
from toktagger.api.main import Server

server = Server()
server.run()
  • Create a directory which will contain your data called data, and then copy the CSV above into a file named 1.csv within the new directory
  • Run python run.py
  • Open the UI in your browser at localhost:8002/ui/projects

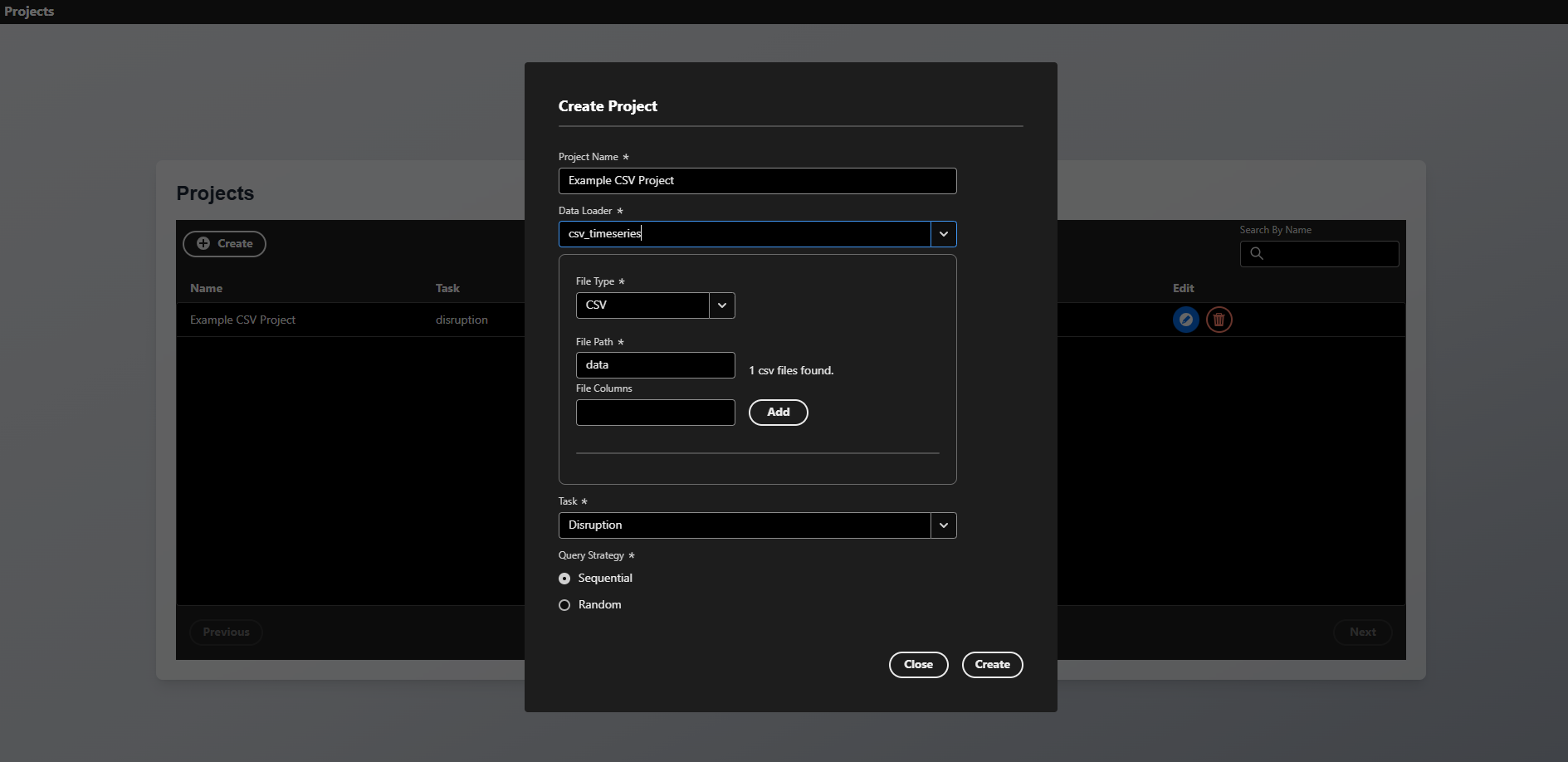

  • Click the Create button on the UI, and click the Data Loader dropdown. You should see your new data loader listed there, called csv_timeseries.
  • After selecting the custom data loader, set the file path as data - the UI should tell you that a file has been found within that directory. Fill in the other information, including project name and task as shown below, and press Create:

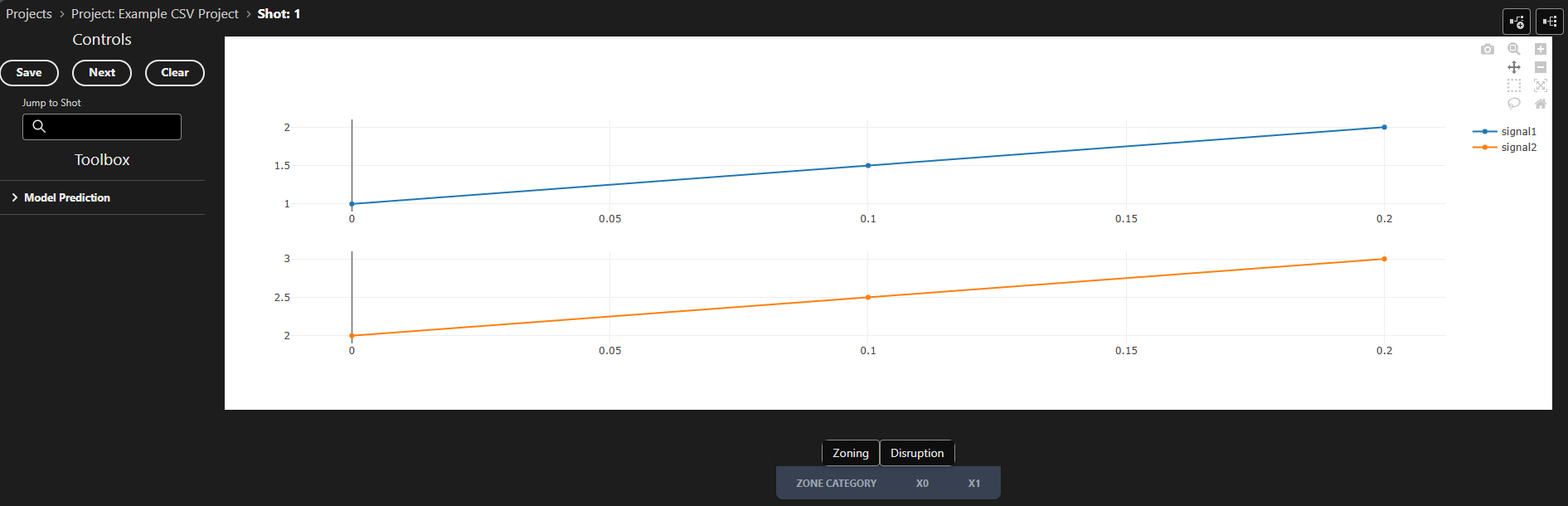

  • You should now be able to open the sample which we have created, corresponding to our CSV file. You should see two time series plots containing the data from our CSV file:


Example: Database Loader

Here's an example of loading data from a SQL database:

Update Config Settings

If your data loader requires configuration inputs from the user, then the config.Settings object should be updated to accept this. This takes the form of a Pydantic Settings object, where nested BaseModels represent sections inside the toktagger.toml configuration file. For example, we can make create a new Settings object which inherits from the one in toktagger.api.config.py, and we can add a new SQL section where we need the database URL to connect to with our dataloader:

from toktagger.api.config import Settings

class SQL(pydantic.BaseModel):
    url: str | None = pydantic.Field(
        None,
        description="URL of the SQL database to connect to",
    )
class UpdatedSettings(Settings):
    sql: SQL = pydantic.Field(SQL)
Note that this will load settings from the following sources, in the following order: 1. Any values which the UpdatedSettings class is initialized with 2. Environment variables, case insensitive, named using the nested model names. Eg for the above setting, it would be SQL_URL. 3. Values in the toktagger.toml configuration file, with section titles according to nesting. Eg:
[sql]
url = "sqlite:///./test.db"
4. Environment variables provided in a .env file

Create the DataLoader

We can then create our dataloader, accessing the setting we defined above:

import sqlalchemy as sa
from typing import Type
import pydantic

from toktagger.api.core.data_loaders import DataLoader, LoaderRegistry
from toktagger.api.schemas.data import MultiVariateTimeSeriesData, TimeSeriesData, DataParams
from toktagger.api.schemas.samples import ShotData
import toktagger.api.config as config

@LoaderRegistry.register("sql_database")
class SQLDatabaseLoader(DataLoader):
    """DataLoader for retrieving data from a SQL database"""

    def __init__(self):
        # Initialize database connection
        # Connection string should be in the settings object
        self.engine = sa.create_engine(config.settings.sql.url)

    @classmethod
    def sample_data_type(cls) -> Type[ShotData]:
        return ShotData

    @pydantic.validate_call
    def get_sample(
        self,
        sample: Sample,
        params: DataParams = DataParams(),
    ) -> MultiVariateTimeSeriesData:
        """Load time series data from database"""
        results = {}

        with self.engine.connect() as conn:
            for signal_name in sample.data.signal_names:
                # Query time series data for this shot and signal
                query = sa.text("""
                    SELECT time, value
                    FROM timeseries_data
                    WHERE shot_id = :shot_id AND signal_name = :signal_name
                    ORDER BY time
                """)

                result = conn.execute(
                    query,
                    {"shot_id": sample.shot_id, "signal_name": signal_name}
                )
                rows = result.fetchall()

                if rows:
                    time = [row[0] for row in rows]
                    values = [row[1] for row in rows]
                    results[signal_name] = TimeSeriesData(time=time, values=values)
                else:
                    results[signal_name] = None

        return MultiVariateTimeSeriesData(values=results)

Launch the Server

To run the server with our custom Settings object and DataLoader, we should create a run script as follows:

run.py
from settings import UpdatedSettings
from loader import CSVTimeSeriesLoader
from toktagger.api.main import Server
import toktagger.api.config as config

# Update config.settings to use our new object
config.settings = UpdatedSettings()

server = Server()
server.run()
