Time Series & Profile 2D Views

The time series and profile 2D views share one plotting and annotation system. Plotly draws the data, D3 draws the annotations on top of it, and a React context holds the annotation state. The profile 2D view is the same system with a heatmap and two extra tools.

Why Plotly and D3?

Plotly provides zooming, panning, subplots, a range slider and heatmaps, so there is no need to build these ourselves. Every annotation tool draws its own SVG with D3 on a layer above each Plotly subplot, rather than using Plotly's shape tools. This keeps one way of building tools, gives them all the same look and feel, and lets any tool be used in any view.

Plotly captures most pointer events to drive panning and zooming, so annotations are drawn with Ctrl held to tell drawing apart from panning.

Structure

SampleProvider                      saved annotations for the sample
├── ToolBar                         left toolbox
└── TimeSeriesView / Profile2dView
    └── TimeSeriesProvider          the view's working copy of the annotations
        ├── BaseTimeSeriesPlot      Plotly plot, D3 layers and pointer events
        │   ├── TimeRegion
        │   ├── TimePoint
        │   ├── BoundingBox         profile 2D only
        │   └── Polygon             profile 2D only
        ├── AnnotationsTable
        └── AnnotationToolbar

The context is in contexts/TimeSeriesContext.tsx, the plot in components/plots/base-plot.tsx and the tools in components/tools/.

Annotation State

There are two copies of the annotations:

• SampleContext holds them in the backend format (Annotation in types.ts). This is what gets saved, and it also holds annotations the view does not draw, such as shot labels.
• TimeSeriesContext holds them as TimeSeriesAnnotation: a list of { x, y } points in data coordinates and a selected flag. A time region is two points, a time point one, a bounding box its top-left and bottom-right corners, and a polygon one point per vertex.

utils.tsx converts between the two. When SampleContext changes, the view re-parses everything. When the view changes an annotation, it syncs back 100 ms later, or once a drag has finished, replacing only the annotation types it owns.

Inside the view, change annotations through the useTimeSeriesActions() actions. The left toolbox sits outside TimeSeriesProvider, so the annotators there write to SampleContext directly.

The Base Plot

BaseTimeSeriesPlot renders the plot with Plotly.react, then adds an SVG group to each subplot for the tools to draw into. It passes plotId and plotReady to each child tool.

It listens for pointer events on the plot and forwards them to the active tool. Ctrl + pointer down starts a drawing, so long as the user is in edit mode and has picked a tool. Pixel positions are converted to data coordinates with Plotly's axis transforms. After every zoom or pan it bumps forceUpdate, which makes the tools redraw at their new positions.

Annotation Tools

Each tool is a component that does two things in two effects:

1. Registers callbacks with registerTooling(type, callbacks). The base plot calls start, move and end as the user draws, plus the optional hover, doubleClick and cancel. Registering is also what adds the tool's button to the annotation toolbar.
2. Renders with D3. It clears what it drew last time and redraws every annotation of its type, attaching d3.drag handlers to move and resize them. It turns off pointer events when Ctrl is held or the view is not in edit mode.

Right-clicking an annotation opens a single shared menu, rendered by TimeSeriesProvider. Tools open it with show() from useContextMenu.

Each tool gives its shapes an aria-label (time-zone, time-point, bounding-box, polygon). The end-to-end tests find annotations by these labels.

Profile 2D

Profile2dView uses the same provider, plot, toolbar and table, with a few differences:

• The heatmap is the top subplot and the integrated values the bottom one, sharing a time axis.
• BoundingBox and Polygon are limited to the heatmap with subplot="xy2".
• New annotations are tagged with the selected signal through the provider's signalName.
• Y-axis rescaling is turned off, as the heatmap's y-axis is fixed, and the hover tooltip is hidden while drawing.

Adding a Tool

1. Add the type to TimeSeriesAnnotationType in types.ts, and a Zod schema matching the backend's Pydantic schema.
2. Add the conversions to utils.tsx, and the label list to the categories in TimeSeriesProvider.
3. Create the component in components/tools/, using an existing tool such as BoundingBox as a template.
4. Add Box Select support in findSelectedAnnotations, and a marker for the annotations table.
5. Add it as a child of BaseTimeSeriesPlot in each view that should offer it.

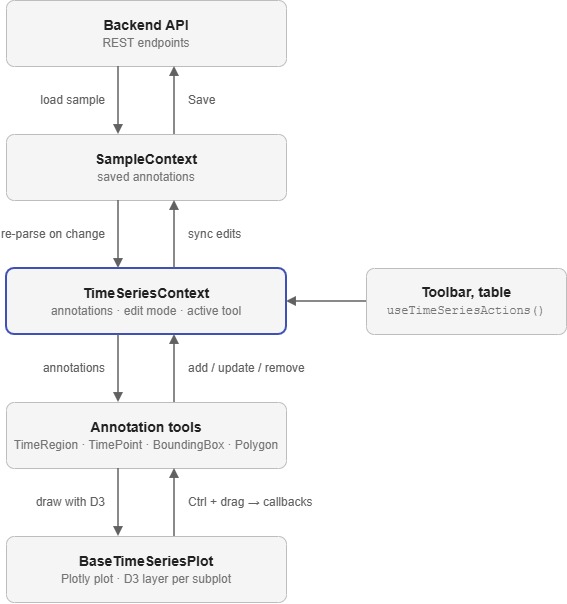

How It Fits Together
