2D Profile Labelling Interface

The 2D profile labelling interface is designed for interactive annotation and analysis of two-dimensional tokamak diagnostic data, such as spectrograms, time-frequency representations, or other spatiotemporal measurements. This interface enables you to visualize 2D data as heatmaps, create various types of annotations, and analyze patterns across time and spatial dimensions.

Overview

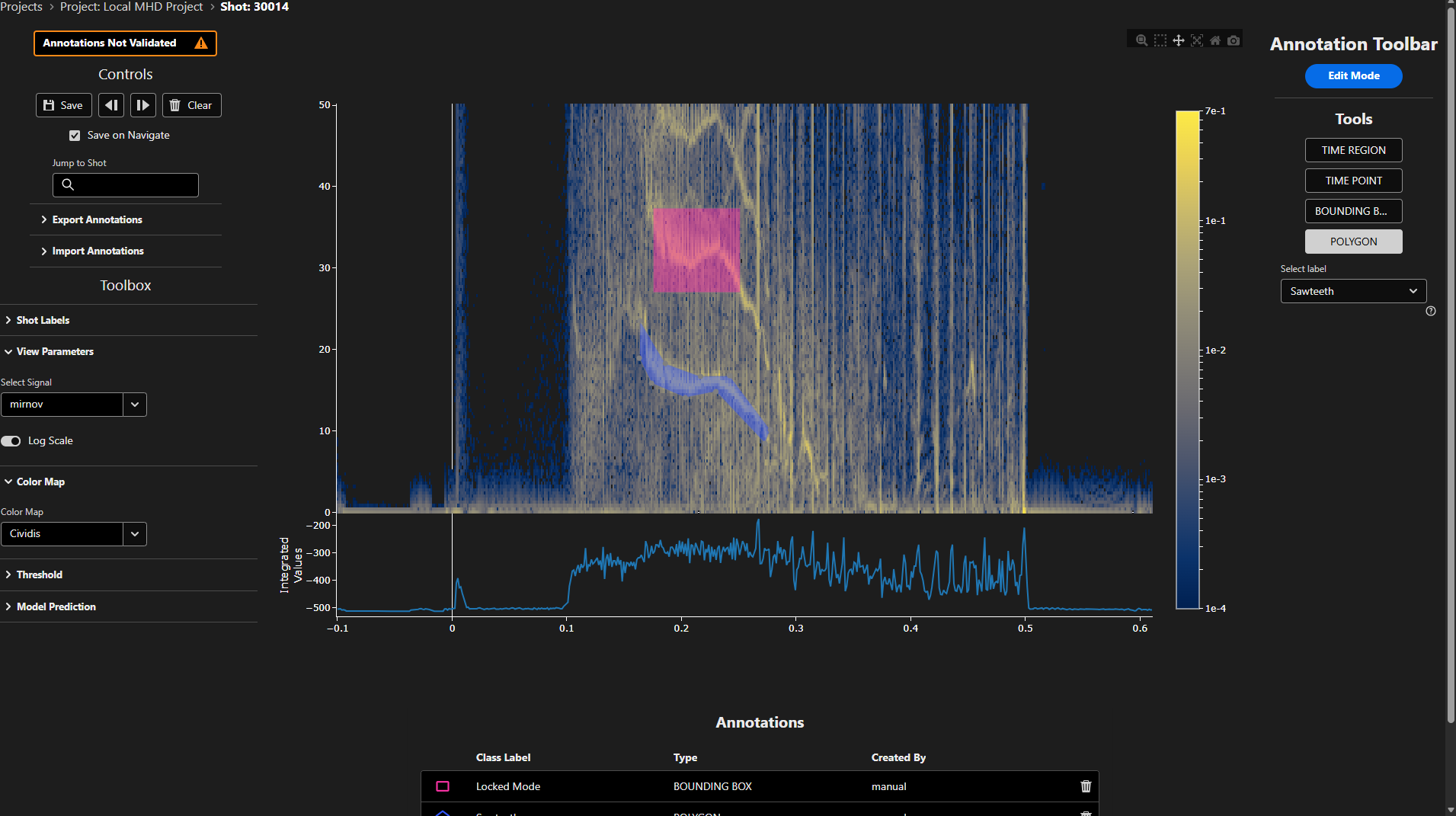

The 2D profile labelling interface showing heatmap and integrated plots with annotations.

The 2D profile view displays diagnostic data as a heatmap with time on the horizontal axis and a spatial dimension (e.g., frequency, radius, or position) on the vertical axis. An integrated time series plot below the heatmap shows the sum of values across the spatial dimension, helping identify temporal patterns and events.

Interface Components

Plot Area

The main visualization consists of two vertically stacked plots:

Heatmap Plot (Top): Displays the 2D data with color intensity representing signal amplitude or power. The color scale automatically adjusts based on the data range and can be toggled between linear and logarithmic scaling.
Integrated Plot (Bottom): Shows the time-integrated values, summed over the spatial dimension. This 1D plot helps identify significant temporal events that may be less obvious in the 2D view.

Both plots share a common time axis, enabling synchronized navigation and analysis.

Color Scale

The heatmap uses a continuous color scale to represent data values. The colorbar on the right side shows the mapping between colors and values:

Linear Scale: Direct mapping of data values to colors
Logarithmic Scale: Useful for data spanning multiple orders of magnitude, with enhanced visibility of low-amplitude features

Available Colormaps:

Cividis (default)
Viridis
Plasma
Inferno
Magma

View Parameters

Access view parameters from the toolbar on the left:

Signal Selection: Choose which diagnostic signal to display when multiple signals are available
Log Scale Toggle: Switch between linear and logarithmic color scaling for better visualization of different dynamic ranges

In the top left of the interface, you'll find navigation controls to move through your dataset:

Annotations Validated / Not Validated: Shows whether the annotations on this sample have been checked and saved. Saving marks the sample as validated, and Clear marks it as not validated
Save Button: Save your current annotations. A project is collaborative, so the save applies your edits to the annotations of other users, and it also removes the annotations of other users that you deleted
Previous Button (◄): Navigate to the previous sample in your project
Next Button (►): Navigate to the next sample in your project
Clear Button: Remove the annotations from the current sample, and mark the sample as not validated. If Show Others' Annotations is selected, the button removes all annotations, including the annotations of other users. If it is not selected, the button removes only your own annotations. The annotations are removed from the database the next time you save, including through Save on Navigate
Save On Navigate: Whether to automatically save any annotations to the database when you move to a different sample
Show Others' Annotations: Whether to show the annotations that other users made. TokTagger keeps this setting for each project
Jump to Shot: Jump to a sample with a given shot ID

Keyboard Shortcuts:

Shift + ←: Navigate to previous sample
Shift + →: Navigate to next sample

The Plotly toolbar at the top of the plot provides navigation tools:

Zoom: Box zoom to a region of interest
Box Select: Click and drag to select multiple annotations within a region (Edit mode only)
Pan: Click and drag to pan the view (the default drag mode)
Autoscale: Zoom out to show all data
Reset axes: Return to the initial view
Download plot: Export the current view as an image

Annotations are drawn with the annotation toolbar described below rather than Plotly's own shape tools, so no draw or erase shape buttons appear here.

The annotation toolbar sits to the right of the plot and drives all annotation creation:

Use the top button to switch between edit mode and view mode. Press e to toggle quickly.
Activate the desired tool from the list of buttons, then use the dropdown that appears to select the label to apply.
With a tool active, add annotations using ctrl+drag on the plot.

Bounding boxes and polygons are restricted to the heatmap, since their vertical extent is only meaningful against the heatmap's axis.

Annotations can only be created, selected, moved or deleted in edit mode. In view mode you can still zoom and pan freely without accidentally changing an annotation. Switching back to view mode clears any selection.

Annotations Table

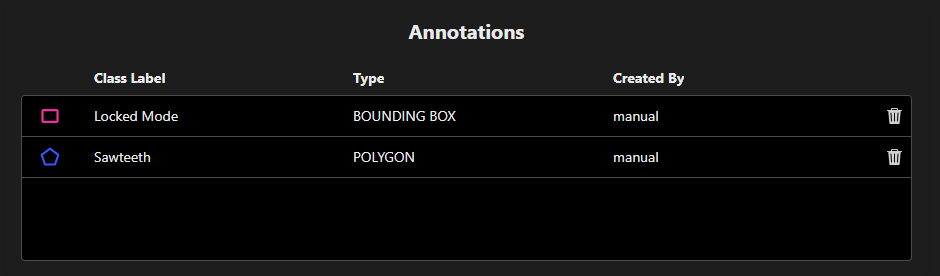

The annotations table, listing each annotation on the current sample.

Below the plot, the annotations table lists every annotation on the current sample. Each row shows a marker in the annotation's colour, its class label, its type (time region, time point, bounding box or polygon) and who created it - manual for an annotation drawn by hand, or the name of the automated annotator or ML model that created it.

Click on a row to move the plot to that annotation. In Edit mode, this also selects the annotation. Selecting annotations on the plot highlights their rows in the table.
Delete annotation (bin icon): Delete that annotation. Deleting requires Edit mode.

Creating Annotations

TokTagger supports multiple annotation types for 2D profile data, each suited to different labeling tasks:

Time Regions (Zones)

Time regions are vertical bands that mark time intervals of interest. They span the full spatial dimension and are ideal for labeling extended events or operational phases.

To create a time region:

Enter edit mode and activate the TIME REGION tool
Choose a label from the dropdown
Ctrl+drag horizontally across the plot to span the interval

Visual appearance: Time regions appear as semi-transparent colored vertical bands spanning the full height of the heatmap.

Available categories: configured per project (see Creating Projects) - the list below is an example.

ELM (Edge Localized Mode)
L-mode (Low confinement mode)
H-mode (High confinement mode)
Thermal Quench
Current Quench
Sawtooth
IRE (Internal Reconnection Event)
Locked Mode
VDE (Vertical Displacement Event)
Unknown

Time Points (VSpans)

Time points are vertical lines marking specific moments in time. They are useful for identifying instantaneous events or transitions.

To create a time point:

Enter edit mode and activate the TIME POINT tool
Choose a label from the dropdown
Ctrl+click at the moment of interest

Visual appearance: Time points appear as vertical colored lines extending through the entire heatmap.

Available categories: configured per project - the list below is an example.

Disruption
Thermal Quench
Current Quench
Control Loss

Bounding Boxes

Bounding boxes are rectangular regions that mark specific areas in both time and spatial dimensions. They are ideal for identifying localized features or events.

To create a bounding box:

Enter edit mode and activate the BOUNDING BOX tool
Choose a label from the dropdown
Ctrl+drag on the heatmap to define the rectangular region

Visual appearance: Bounding boxes appear as semi-transparent colored rectangles with visible borders.

Editing bounding boxes:

Move: Click and drag the rectangle to reposition it
Resize: Click and drag any edge of the rectangle to adjust its size
Delete: Right-click the annotation and choose "Delete", or select it and press Delete

Polygons

Polygons allow you to create freeform closed shapes to annotate irregular features or complex spatial patterns.

To create a polygon:

Enter edit mode and activate the POLYGON tool
Choose a label from the dropdown
Hold ctrl and click on the heatmap to place each vertex
Click near the starting vertex, or double-click, to close the polygon

Press Esc to abandon a polygon part way through drawing it.

Visual appearance: Polygons appear as semi-transparent colored closed shapes following your drawn path.

Editing polygons:

Move: Click and drag the polygon to reposition it
Reshape: Click and drag individual vertices to adjust the shape
Add a vertex: Click on an edge to add a new vertex at its midpoint
Remove a vertex: Press Delete while dragging the vertex. A polygon must keep at least three vertices
Delete: Right-click the annotation and choose "Delete", or select it and press Delete

Thresholded Regions

The thresholding tool generates polygon annotations automatically, outlining the regions whose values exceed a chosen percentile.

To generate them:

Open the "Threshold" panel in the left toolbar
Enable the tool with the Thresholding switch
Adjust the parameters (see Automated Annotation Tools below)

Results refresh automatically whenever a parameter changes - there is no apply step. The heatmap is faded while the tool is active so the generated outlines stand out against the data.

Visual appearance: The regions appear as ordinary polygon annotations, and can be edited, relabelled and deleted exactly like hand-drawn ones.

Modifying Annotations

All of the actions below require edit mode.

Selecting Annotations

Click on any annotation to select it
Box Select: enable the toolbar's Box Select tool, then drag a box to select multiple annotations at once
Click on a row in the annotations table to select that annotation
Selected annotations can be modified or deleted
Right-click on any annotation to access its context menu

Moving and Resizing

Drawing-based annotations (Polygons and Bounding Boxes):

Click and drag to move the entire shape
Click and drag vertices or handles to reshape
These annotations are drawn as a D3 overlay on top of the plot, and are shared with the time series interface

Time regions and time points:

Click and drag to reposition along the time axis
For time regions, drag the edges to adjust the start or end time

Changing Categories

To change the category of an existing annotation:

Right-click on the annotation to open its context menu
Select "Set type" and choose the new category

If you right-click on a selected annotation, the new category is applied to every selected annotation of the same type.

Deleting Annotations

To remove an annotation, do one of the following:

Right-click on the annotation and select "Delete" from the context menu. If the annotation is selected, every selected annotation is deleted
Select one or more annotations and press Delete or Backspace
Click the bin icon on the annotation's row in the annotations table

Plot Interaction

Zooming and Panning

The 2D profile plot supports rich interactive exploration:

Box Zoom: Click the zoom button in the toolbar, then click and drag to select a region to zoom into
Pan: Click the pan button in the toolbar, then click and drag to pan the view
Scroll Zoom: Enabled - the mouse wheel zooms the time axis. The heatmap's vertical axis is fixed, so the wheel only changes the time range
Reset View: Click "Reset axes" or "Autoscale" in the toolbar, or double-click the plot, to return to the initial view

Color Scale Adjustment

Linear vs. Log Scale: Toggle between linear and logarithmic color scaling using the switch in the View Parameters panel
Colormap Selection: Choose from different colormaps in the Color Map panel of the left toolbar
Automatic Range: The color scale automatically adjusts to the data range

Working with the Integrated Plot

The bottom integrated plot provides a 1D time series view:

Helps identify significant events by showing temporal patterns
Shares the same time axis as the heatmap for easy correlation
Updates automatically when zooming or panning the time axis

Automated Annotation Tools

Thresholding Tool

The thresholding tool automatically identifies regions in your 2D data that exceed specified intensity criteria. This is particularly useful for:

Detecting edge localized modes (ELMs) in tokamak spectrograms
Identifying bursts, instabilities, or other high-intensity events
Creating initial annotations for further manual refinement

Parameters:

Percentile: Sets the intensity threshold as a percentile of the data distribution (e.g. 95 means the top 5% of values)
Range of Interest: Restricts analysis to a range of the second dimension, useful for excluding noise or irrelevant regions
Sigma: Controls Gaussian smoothing to reduce noise before thresholding
Min Size: Filters out detected regions smaller than this many pixels
Vertical Line Filter Width: Subtracts a rolling mean along the second dimension, suppressing broad features so narrow ones stand out. Set to 0 to disable

Workflow:

Load your data sample
Open the Threshold panel in the left toolbar and enable it
Adjust the parameters and watch the outlines update on the heatmap
Review and manually edit the generated polygons if needed
Save to keep them

Note: Re-running replaces only this tool's own unsaved output for the current signal. Annotations you drew yourself, results you have already saved, and annotations belonging to other signals are all left untouched. Turning the tool off discards its unsaved output but keeps anything saved.
